Design
Brushless
Motor Type
Brushless Gear Hub Motor
Voltage
36V
Brand Name
RisunMotor
Wattage
> 400w
Manufacturer
8Fun/bafang
Voltage
36V
Power
500W
Motor Type
Mid Drive/Central Drive
Compatible Controller
For 36V 500W Controller
LCD Control Panel
C965 Control Panel
Type
Brushless Geared
LCD Display
Blank Screen C965
Color
Black
SKU
bafang-bbs02-500-c965

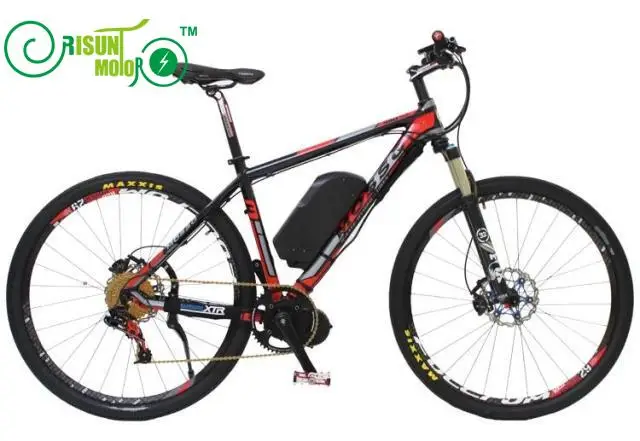

We also supply the Bafang Mid dirve parts. With an integrated speed sensor, this mid-drive motor has a rated power of 500W , a reduction ratio of 1: 21.9 and a maximum torque of 100 N.m, will provide the rider with great explosive force when starting the system. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes. This motor is black. 1. Bafang500W BBS02Mid-Drive Motor: 1 pc 2. C965 LCDDisplay + Operation Button: 1 pc 3. Brake Levers: 2 pcs 4. Thumb Throttle: 1 pc 5. Waterproof Quick Release Wires: 1 pc 6. Speed Detecting Sensor + Magnet: 1 pc 7. Chain wheel: 1 pc 8. Left Crank + Right Crank: 1 pc/each 9. Fixing Plate: 1 pc 10. Nuts 11. Anderson Plug Power Cable: 1 pcs 1. Voltage: 36V 2. Power: 500W 3. Motor Weight: 4.3kgs 4. BB Length: 68mm (Suitable for 68mm length BB Bike Modification) 5. Working Temperature of Display: - 20°C- 80°C. 6. Waterproof Grade: IP65 Item has one year guarantee. Customer's wrong operation is not include in this warrenty. Import duty/tax is not include in item price. This item is noreturnableunless itis faulty. Return item must be unused.Returns that do not meet our policy will not be accepted and will be sent back to the customer. Installation: ● Open the package and take out drive unit accessories; And check the specification whether it is correct. ● Fix the chain wheel on drive unit with 5pcs screw M5*10, then fix chain cover on chain wheel with 5pcs screws ST3.9. ● Fix the drive unit axle tube on frame bottom bracket. ● The surface with teeth of fixing plate towards inside, then fix the plate on drive unit with 2pcs M6*10. ● Hold the drive unit near to bicycle fork, force less than 5kgs, tight 1st nut M33 onto axle tube with force : 30-40N.m. ● Fix 2nd nut M33 onto axle tube, tightening force: 30-40N.m. ● Fix the left crank on the bike with M8 inner hexagon screw. Tightening force: 35-40N.m. ● Fix the right crank on the bike with M8 inner hexagon screw. Tightening force: 35-40N.m. ● Connect all cables for battery, display, speed detecting sensor and so on.
